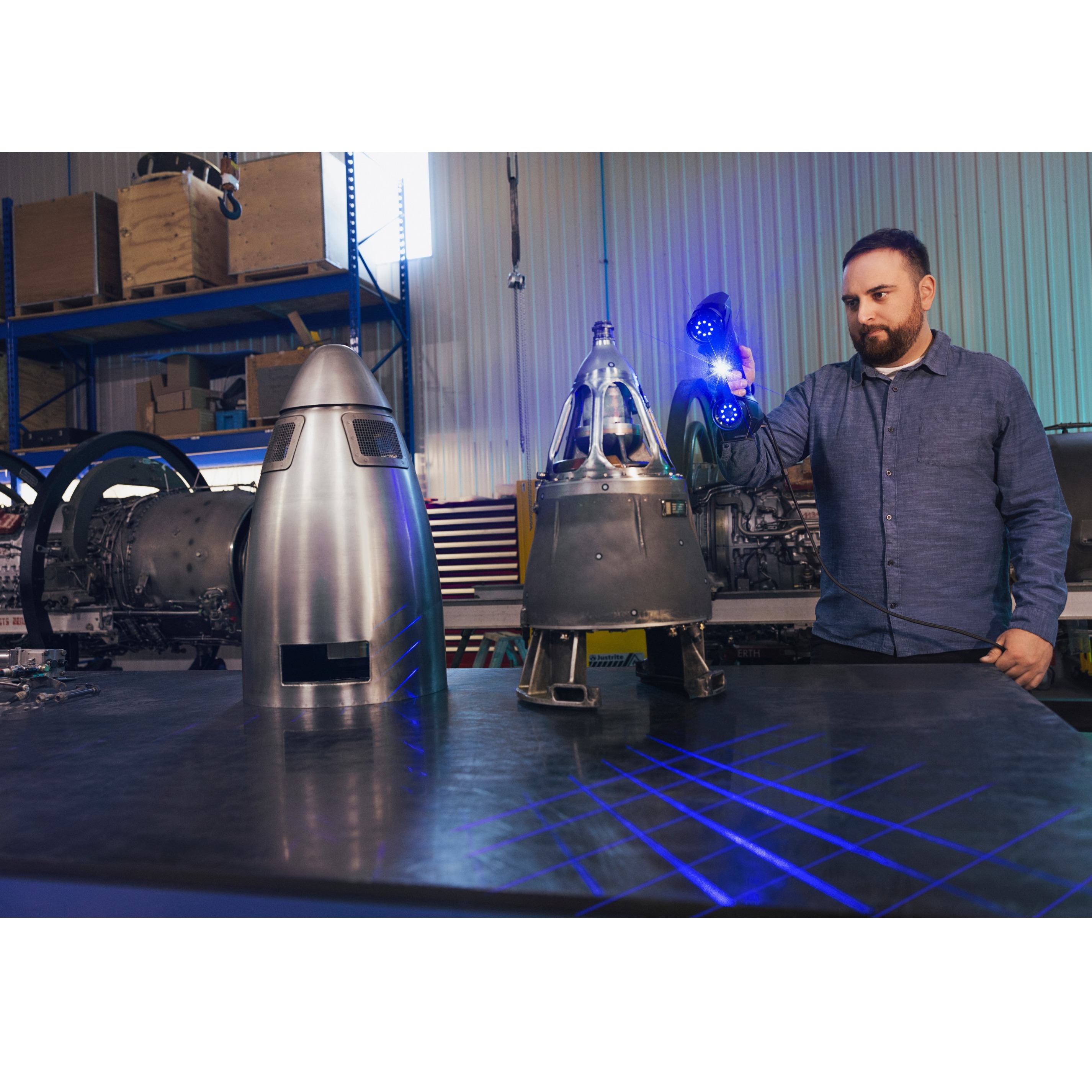

The HandySCAN 3D|BLACK Series delivers accurate, high-resolution, and repeatable results, regardless of the measurement setup and user experience level. With its high volumetric accuracy, the BLACK Series accurately scans parts of all sizes, from small to large, making it ideal for various applications. Accuracy 0.025 mm (0.0009 in) 0.012 mm (0.0005 in) with Limited Edition Volumetric accuracy 0.020 + 0.040 mm/m (0.0008 in + 0.0005 in/ft) 0.020 mm + 0.015 mm/m (0.0008 in + 0.00018 in/ft) ) with Accu+ Kit 0.012 mm + 0.015mm/m (0.0005 in + 0.00018 in/ft) with Limited Edition Reliable acceptance test Based on VDI/VDE 2634 part 3 standard Based on ISO 10360 standard ISO/IEC 17025: 2017 accredited laboratory The HandySCAN 3D|BLACK Series supports automatic mesh generation, streamlining the workflow from setup to scan to mesh. Its Flex Volume feature also allows for rapid, high-quality measurements of large parts from a distance and precise scanning of smaller parts at a closer range.

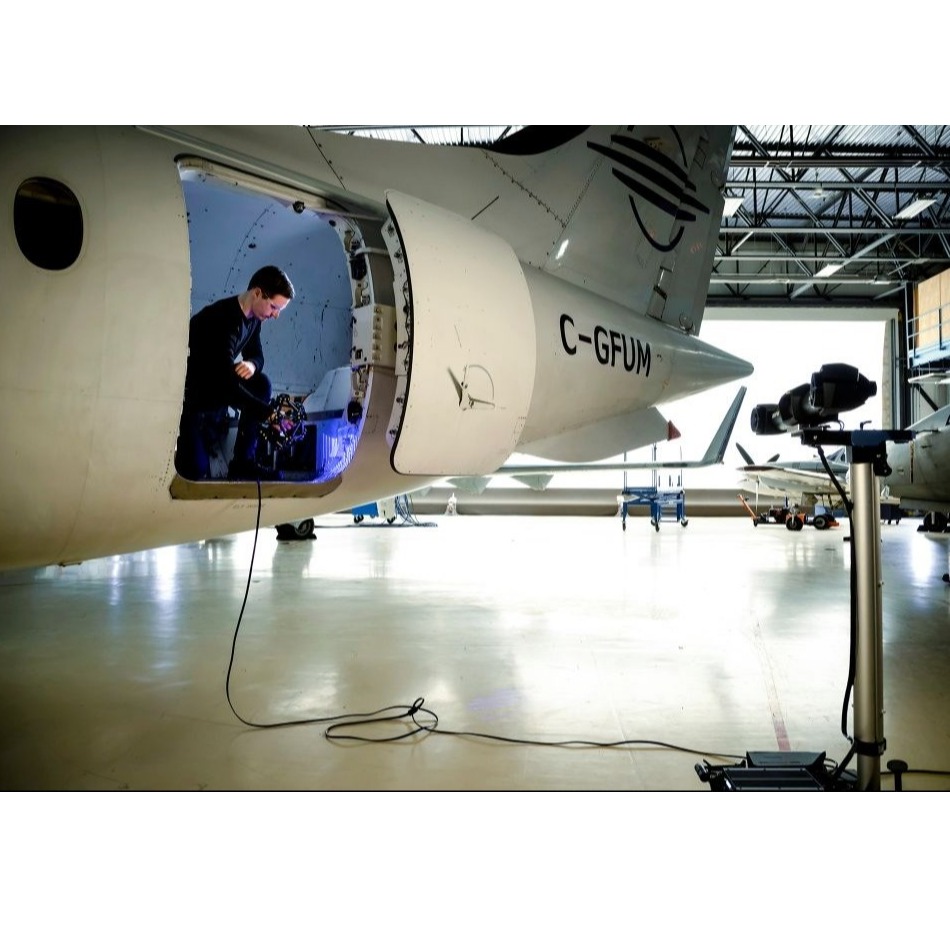

The MetraSCAN 3D features 30 blue laser lines and a high measurement rate to accelerate 3D scanning processes. Thanks to quick setup and onboarding, real-time scans and ready-to-use files, your 3D scanning workflow will never have been faster. High measurement rate 1,800,000 measurements/second Large scanning area for all types of parts 30 blue laser lines Ultra-quick setup No warm-up time; users can be up-and-running in less than 5 minutes 360° Magnetic Targets For quick and easy setups Optimized visibility for dynamic tracking The AVE feature allows for automatic acquisition volume extension only by moving the C-Track, without requiring extra measurements. With its advanced integrated photogrammetry and scaling algorithms, the MetraSCAN 3D ensures more accurate, repeatable, and human-error-free measurements on large parts. Accuracy 0.025 mm (0.0009 in) Automatic Volume Extension 0.025mm + 0.015mm/m (0.0009in + 0.00018in/ft)

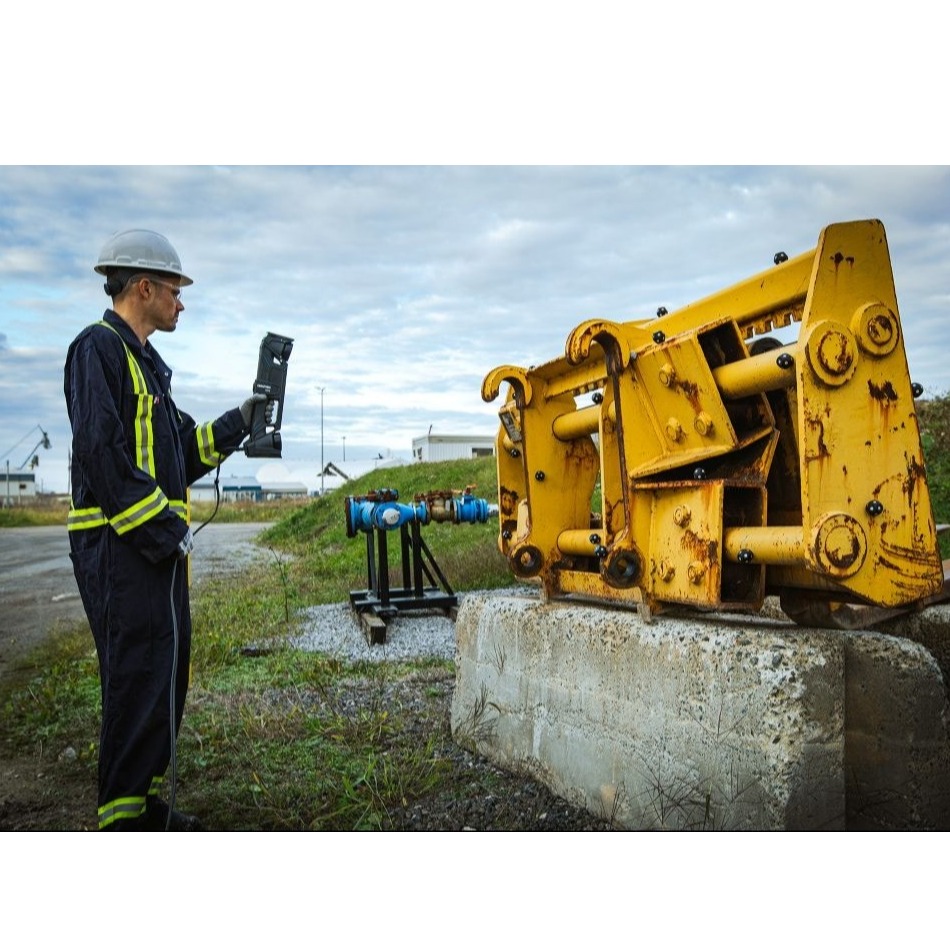

Due to its 38 laser lines and large scanning area, the HandySCAN 3D|MAX Series is the 3D scanner for measuring large part sizes—up to 15 m (50 ft)—quickly and easily, providing metrology-grade results in mere minutes. Its Flex Volume feature offers an adjustable, flexible working distance—from 0.3m (1 ft) to 2.5m (8.2 ft). This means that the user can scan smaller areas with remarkable quality at a short distance and measure large parts at very high speed from a longer distance. Featuring dynamic referencing and volumetric accuracy optimization, this 3D measurement solution is engineered to work in harsh environments and deliver high accuracy on large measurements, regardless of the user’s experience level. With its Real-Time Calibration capability, the MAX Series integrates the calibration step directly into the scanning workflow, performing it automatically and seamlessly for the user. Its Flex Volume feature also provides high precision and a fine level of detail.

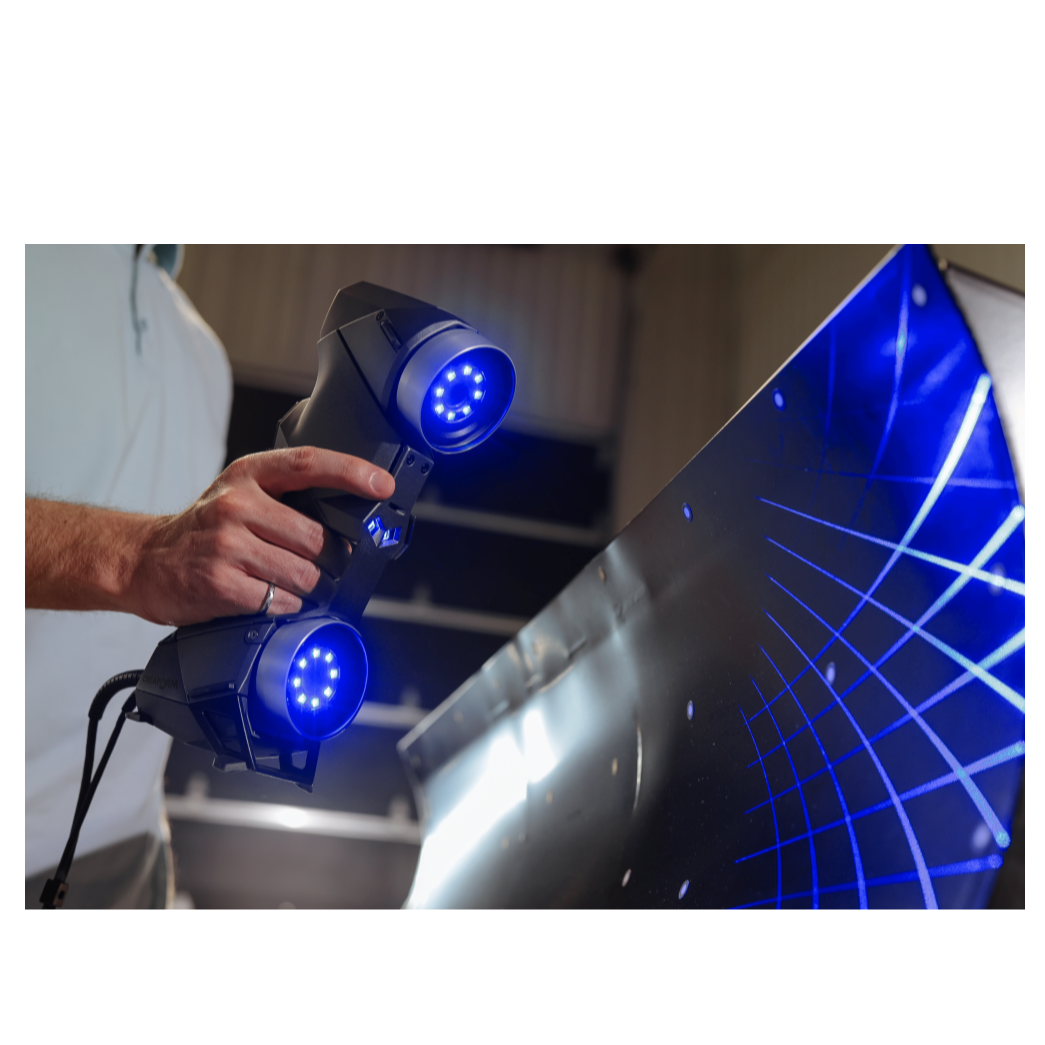

The HandySCAN 3D|SILVER Series delivers accurate and reliable 3D measurements regardless of the measurement setup quality and the user’s experience level. Featuring dynamic referencing, both the scanner and part can move freely during scanning, and an accurate and high-quality scan can still be obtained. Accuracy Up to 0.030 mm (0.0012 in) Volumetric accuracy 0.020 ± 0.060 mm/m (0.0008 in ± 0.0007 in/ft) With a design inspired by Creaform's flagship metrology-grade 3D scanner, the SILVER series benefits from the high-quality performance of the BLACK series but at an accessible price, making it the best value for money on the market. Manufactured in North America and purchased by over 5,000 users, this proven and trusted technology exemplifies Creaform's commitment to reliability and attentive service.
